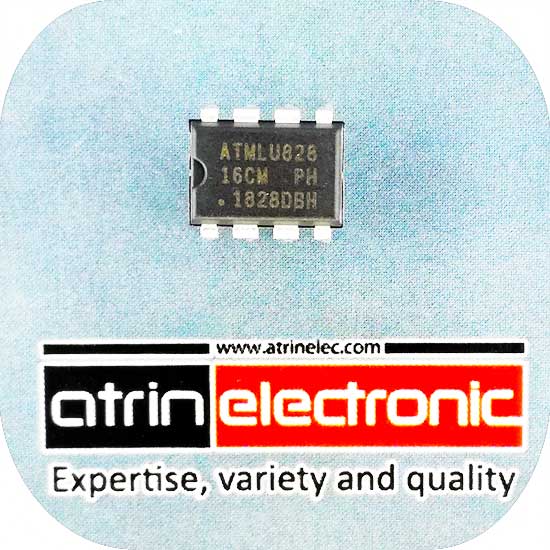

AT24C16/16CM/ATMLU828 اورجینال

نقد و بررسی اجمالی

ایتوپرام 16 کیلو بیت ،2048 بایت با رابط I2C دوسیمه ای سی (EEPROM 16-Kbit (2024 x 8 اورجینال

 دریافت دیتا شیت

The AT24C16 provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 2024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C16 is available in space-saving 8-pin PDIP, (AT24C16) packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Features

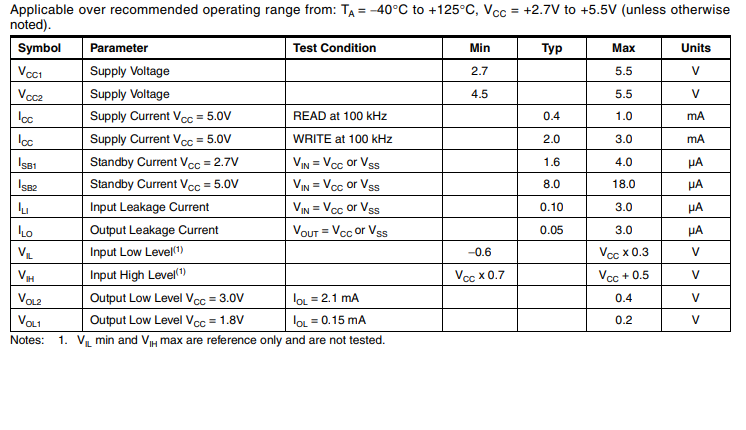

 Low-voltage and Standard-voltage Operation – 5.0 (VCC = 4.5V to 5.5V) – 2.7 (VCC = 2.7V to 5.5V) – 2.5 •

 (Internally Organized 2024 x 8 (16K  •

2-wire Serial Interface•

 Schmitt Trigger, Filtered Inputs for Noise Suppression •

Bi-directional Data Transfer Protocol •

 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility •

Write Protect Pin for Hardware Data Protection •

 byte-16 Page (16K) Write Modes •

Partial Page Writes are Allowed •

(Self-timed Write Cycle (10 ms max •

High-reliability – Endurance: 1 Million Write Cycles – Data Retention: 100 Years •

Automotive Grade and Extended Temperature Devices Available •

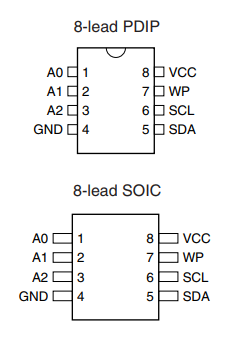

  pin-8 PDIP Packages •
