ماژولCRIUS I2C-GPS NAV Module CN-06 V3.1 اورجینال

نقد و بررسی اجمالی

ماژول GPS با هسته NEO6M برای برد فلایت کنترل CRIUS I2C-GPS NAV Module + CN-06 V3.1 GPS Receiver U-blox for MWC MultiWii SE Flight Controller Board

 دریافت دیتا شیت
NMEA-Reference

دانلودنرم افزار u-center

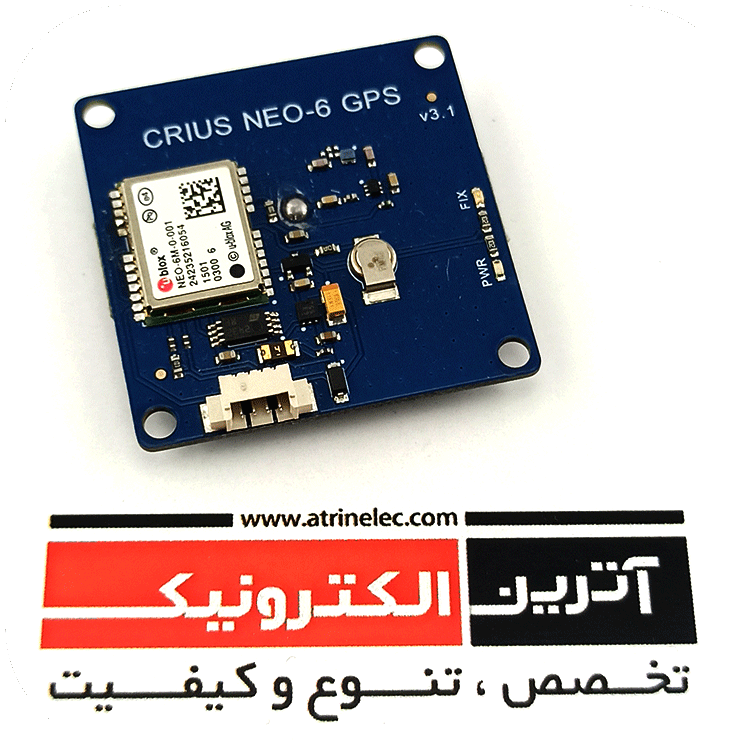

CN -06 GPS receiver
:Features
Standalone GPS receiver
U-blox NEO-6M GPS module

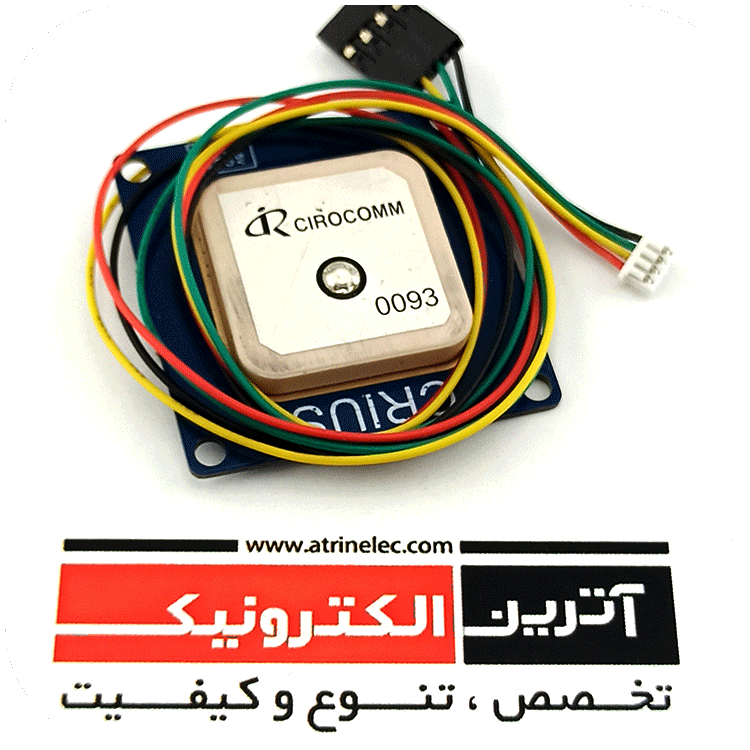

Build in 18X18mm active GPS antenna
UART TTL socket
  Rechargeable battery for Backup
Other
Dimension: 28mmX33mm
Height: 13mm
(Weight:16.5g/18.9g(include cable
Hole diameter: 3mm

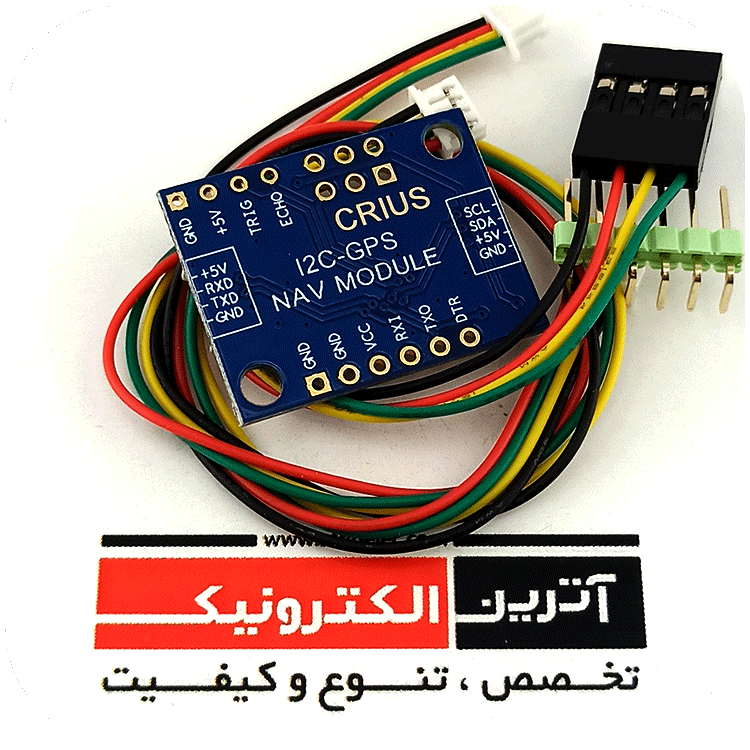

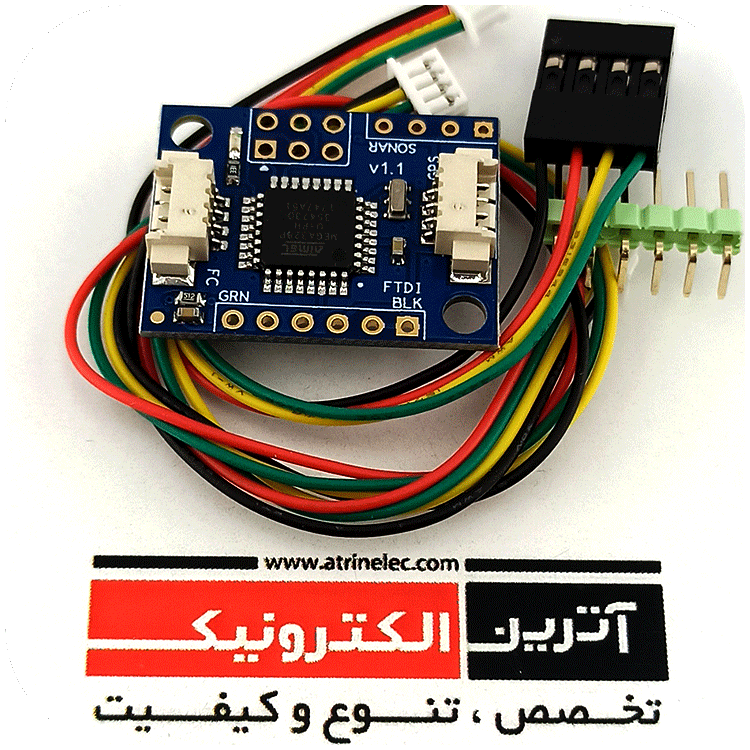

I2C-GPS NAV Module
Features
·All GPS data available via the I2C bus to connect to 328P Multiwii FC
·A LED on board show GPS 3D Fix status
·ATMega 328P Microcontroller
·2 Molex 1.25mm 4Pin socket for GPS receiver and FC
·2 port for ISP and FTDI
Other
·Dimension: 20mmX30mm
·Height: 5mm
(Weight:2.4g/5g(include cable
