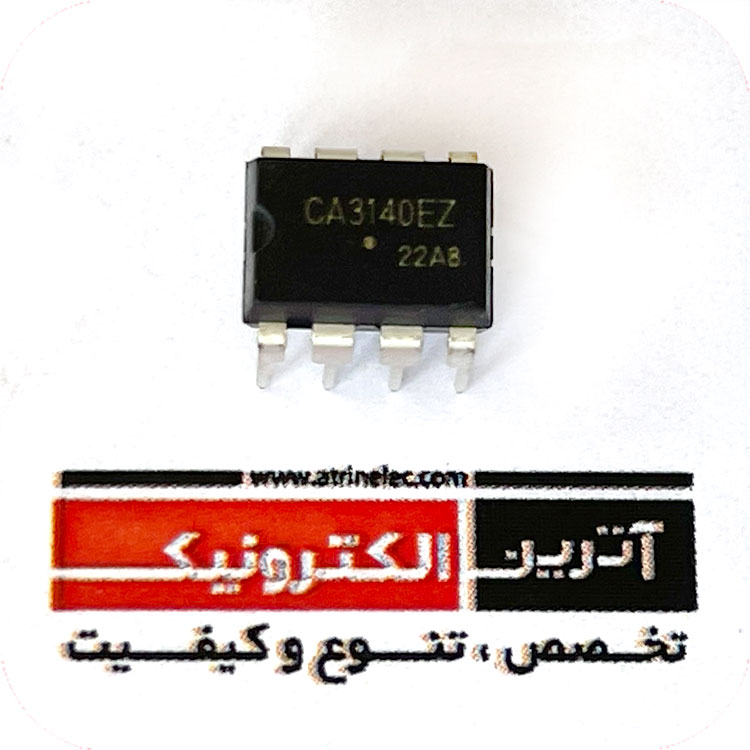

INTERSIL CA3140EZ Operational Amplifier, Single, 1 Amplifier, 4.5 MHz, 9 V/µs, 4V to 36V, DIP, 8 Pins آمپلی فایر تک 1 آمپر 94.5 مگاهرتز -کنترلر انواع اینورتر
INTERSIL CA3140EZ Operational Amplifier
Single, 1 Amplifier, 4.5 MHz, 9 V/µs, 4V to 36V, DIP, 8 Pins
4.5MHz, BiMOS Operational Amplifier with
MOSFET Input/Bipolar Output
آمپلی فایر تک 1 آمپر 94.5 مگاهرتز -کنترلر انواع اینورتر
استفاده در انواع صنایع از جمله تقویت کننده جریان انواع بردهای درایو دستگاه های جوش و برش و اینورتری
درایورهای دور موتور و .....
Features
• MOSFET Input Stage
- Very High Input Impedance (ZIN) -1.5TΩ (Typ)
- Very Low Input Current (Il) -10pA (Typ) at ±15V
- Wide Common Mode Input Voltage Range (VlCR) - Can be
Swung 0.5V Below Negative Supply Voltage Rail
- Output Swing Complements Input Common Mode
Range
• Directly Replaces Industry Type 741 in Most Applications
• Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
• Ground-Referenced Single Supply Amplifiers in
Automobile and Portable Instrumentation
• Sample and Hold Amplifiers
• Long Duration Timers/Multivibrators
(μseconds-Minutes-Hours)
• Photocurrent Instrumentation
• Peak Detectors
• Active Filters
• Comparators
• Interface in 5V TTL Systems and Other Low
Supply Voltage Systems
• All Standard Operational Amplifier Applications
• Function Generators
• Tone Controls
• Power Supplies
• Portable Instruments
• Intrusion Alarm Systems
Pinout
CA3140 (PDIP, SOIC)
