ترانسدیوسر(سنسور جریان اثر هال) 50 آمپر AC/DC
VSM025A Hall-effect Voltage Sensor Series
Voltage Transducers
ساخت چیفول

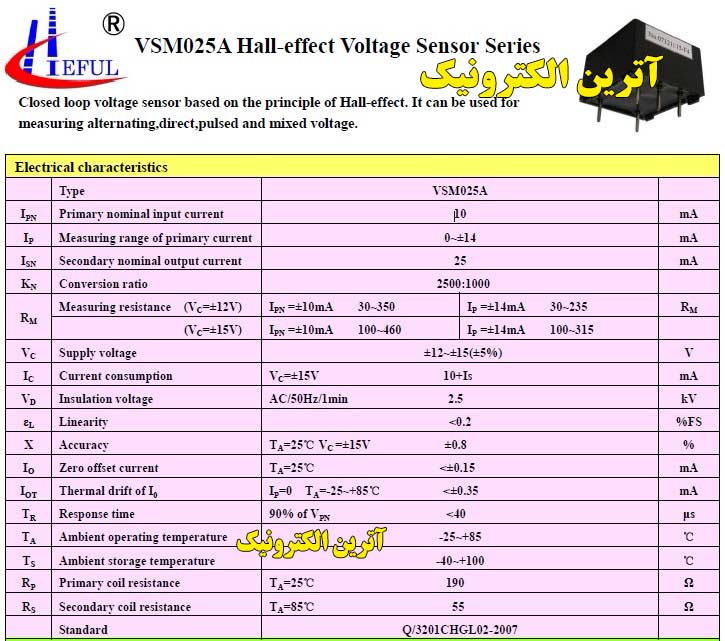

Closed loop voltage sensor based on the principle of Hall-effect. It can be used for
measuring alternating,direct,pulsed and mixed voltage.
Hall-Effect Current Sensor Series
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ترانسدیوسر- مبدل پارامتر |
سری |
اندازه گیری جریان |
تعداد پین |
5 |
پکیج |
- |
ولتاژ کاری |
±15V |
جریان کاری |
25A |
IPN |
10mA |
IP |
±14mA |
VOUT |
- |
VC |
±12-15V |
IC |
I>10mA |
TR-tr |
T<40µs |
TA |
85+~25- |
TS |
100+~40- |
ابعاد |
29x26x15mm |
دمای کاری |
100+~40- |
برند |
CHIEFUL |
کشور سازنده |
- |
کیفیت |
اریجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
ترانسدیوسر Transducers
بسیار با دوام و با کیفیت
طول عمر بالا
انواع اینورترهای دور و جریان
انواع محافظ های تابلو برق
انواع دستگاه های جوش و برش اینورتری
انواع نمایشگرهای جریان
مصارف عمومی
مخابراتی
نظامی و غیره ...
Features
·Closed loop (compensated) current
transducer using the Hall effect
·Printed circuit board mounting
·Insulated plastic case recognized
according to UL 94-V0.
Advantages
·Excellent accuracy
·Very good linearity
·Low temperature drift
·Optimized response time
·Wide frequency bandwidth
·No insertion losses
·High immunity to external
interference
·Current overload capability.
Applications
·AC variable speed drives and servo
motor drives
·Static converters for DC motor drives
·Battery supplied applications
·Uninterruptible Power Supplies
(UPS)
·Switched Mode Power Supplies
(SMPS)
·Power supplies for welding
applications.
