STM32F103ZCT6 اریجینال-کیفیت بالا (افزایش موقتی قیمت جهانی)

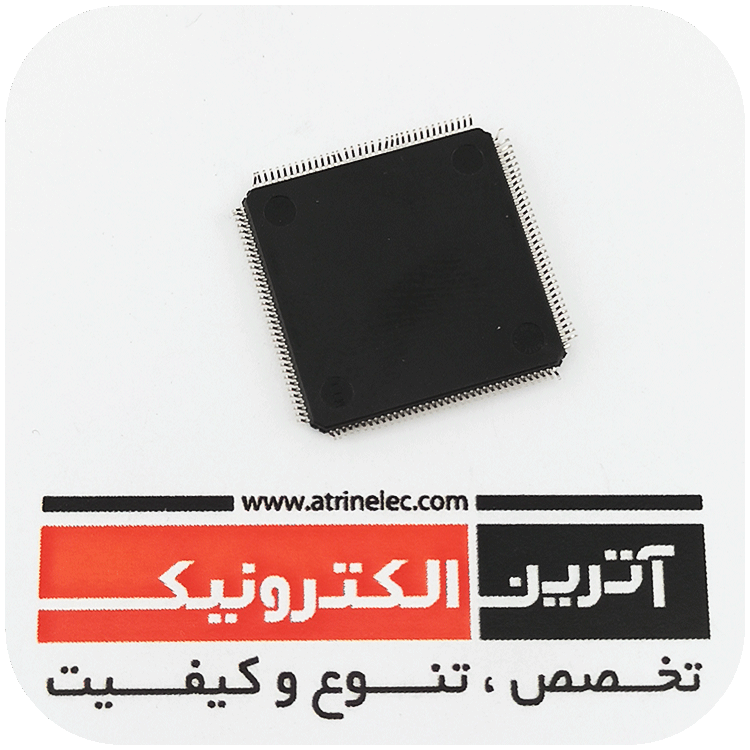

STM32F103ZCT6
میکروکنترلر 32 بیتی با فلش 256K و رم 64K با فرکانس 72 مگاهرتز - Mainstream Performance line, ARM Cortex-M3 MCU with 256 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN
تعداد
تخفیف
قیمت
+1
1,019,500 تومان
+10
6.3 %
954,800 تومان
+50
12.4 %
893,200 تومان
برند: STMICROELECTRONICS پکیج: LQFP144 وزن: 1.0g ابعاد: 0.16x2.2x2.2 دیتاشیت

نقد و بررسی اجمالی

میکروکنترلر 32 بیتی با فلش 256K و رم 64K با فرکانس 72 مگاهرتز - Mainstream Performance line, ARM Cortex-M3 MCU with 256 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN



  دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

he STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM The STM32F103xx high-density performance line family operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply.
A comprehensive set of power-saving mode allows the design of low-power applications.
These features make the STM32F103xx high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.

به جرات میتوان گفت محبوب ترین میکروکنترلر ها در بین خانوادهARM سری STM32 است که دارای طیف مختلف از لحاظ سایز - کارایی و قیمت هستند.

این میکرو کنترلر ها در ایران محبوبیت زیادی پیدا کرده است و همچنین مشاهده شده جدید ترین سیستم ها با این میکرو کنترلر در صنعت ساخته شده و از لحاظ کارایی و مقاومت در برابر نویز بسیار عالی عمل کرده است و برنامه نویسان به سرعت از خانواده های قبلی به این خانواده مهاجرت کرده اند.

این ای سی از بخش های متفاوت TIMER,ADC,DAC,PWM,COUNTERو... تشکیل شده است که بسته به نیاز خود می توانید نمونه های مختلف را انتخاب کنید.

توصیه مااینست برای کار با این ای سی حتما از نرم افزار STM32CUBEMX(دانلود)  استفاده کنید که آموزش کار با ان به صورت تصویری توسط گروه آترین الک(کلیک کنید) تهیه شده است.

امکانات این ای سی :

Core: ARM® 32-bit Cortex - 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
- Single-cycle multiplication and hardware division
Memories - 256 to 512 Kbytes of Flash memory
- up to 64 Kbytes of SRAM - Flexible static memory controller with 4 Chip Select.
Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories - LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
- 2.0 to 3.6 V application supply and I/Os - POR, PDR, and programmable voltage detector (PVD)
- 4-to-16 MHz crystal oscillator - Internal 8 MHz factory-trimmed RC - Internal 40 kHz RC with calibration
- 32 kHz oscillator for RTC with calibration
Low power - Sleep, Stop and Standby modes - V
3 × 12-bit, 1 μs A/D converters (up to 21 channels)
- Conversion range: 0 to 3.6 V
- Triple-sample and hold capability
- Temperature sensor
2 × 12-bit D/A converters
DMA: 12-channel DMA controller - Supported peripherals: timers, ADCs, DAC, SDIO, I -
Debug mode - Serial wire debug (SWD) & JTAG interfaces
- Cortex
Up to 112 fast I/O ports
- 51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V
-tolerant
Up to 11 timers - Up to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
- 2 × 16-bit motor control PWM timers with dead-time generation and emergency stop
- 2 × watchdog timers (Independent and Window)
- SysTick timer: a 24-bit downcounter
- 2 × 16-bit basic timers to drive the DAC
Up to 13 communication interfaces - Up to 2 × I
- Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
- Up to 3 SPIs (18 Mbit/s), 2 with I - CAN interface (2.0B Active) - USB 2.0 full speed interface
- SDIO interface
CRC calculation unit, 96-bit unique ID
ECOPACK

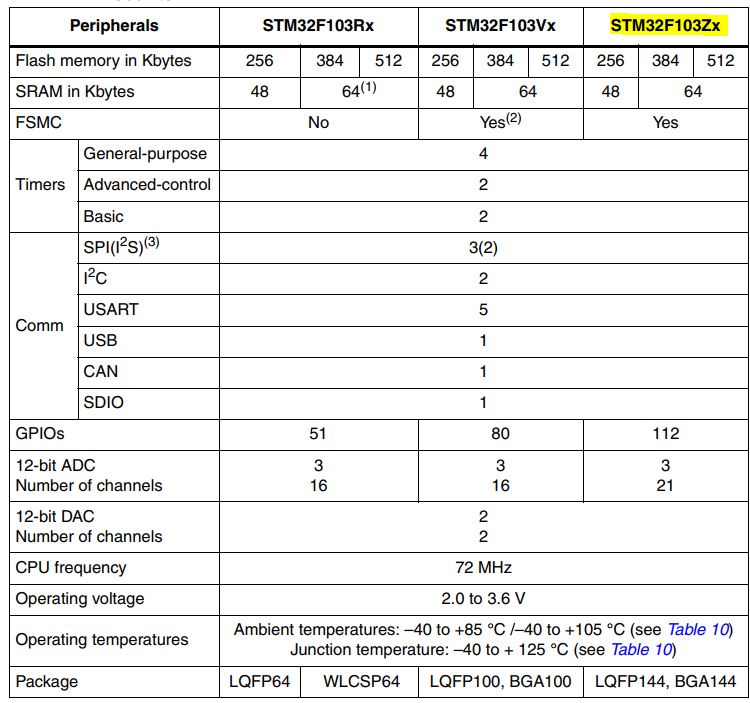

مشخصات بیشتر:

مشخصات/پارامتر

توضیحات/تعداد

NAME

STM32F103ZCT6

MCU Family

STM32

MCU Series

STM32F1

Package

LQFP144

Architecture

ARM Cortex-M3

Operating Temperaure

105+~ 40-

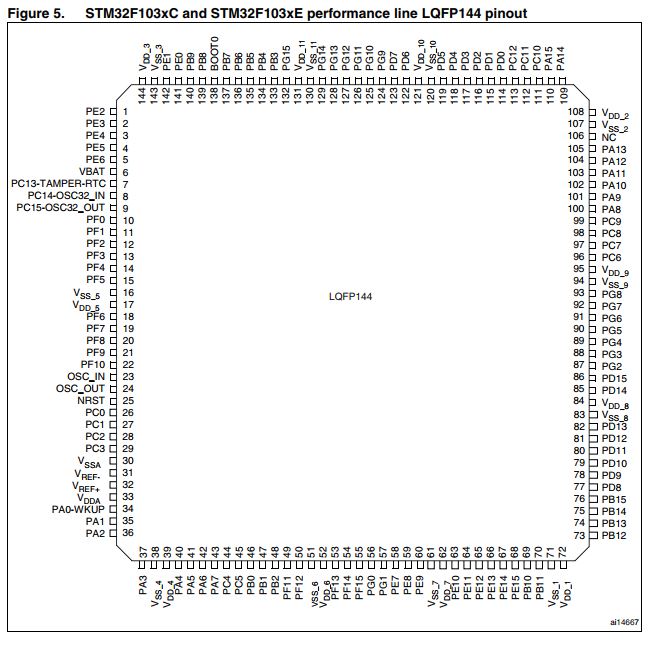

PIN

144

Digital I/O

112

Power supply

2-3.6V

(Frequency (max

72MHZ

Flash memory

256KB

SRAM

48KB

ADC

 21Channels
(12Bit)

DAC

2Channels
(12Bit)

DMA

12

SPI

3

I2C

2

I2S

2

UART+USART

5

CAN

1

 CAN FD

-

USB

1

SDIO

YES

Parallel interfaces

SDIO

Additional Serial Interfaces

-

Display controller

-

TIMER

8
(16Bit)

PWM

1
(16Bit)

Watchdog

2

RTC

YES
